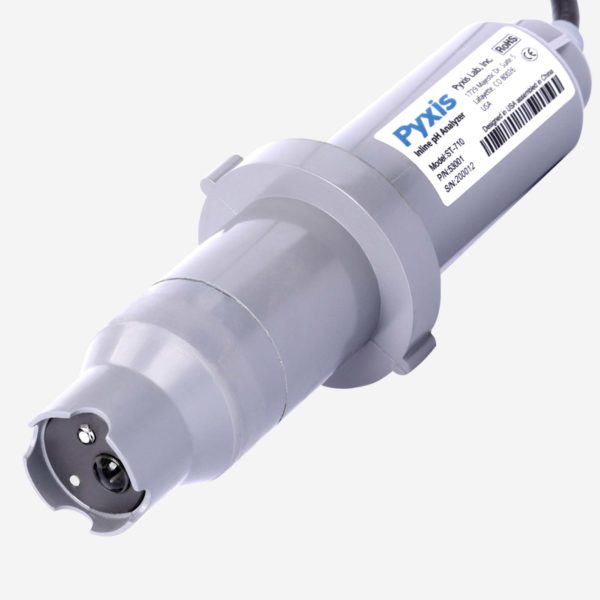

ST-710 Inline pH Sensor

Simplistic, Industrialized pH Sensor.

A simple to use inline sensor that measures for pH (0–14). Built robustly for Industrial Water Treatment applications!

CE Mark

$814.00

Description

The ST-710 is a uniquely designed industrial-grade inline pH sensor that offers greatly improved range, accuracy and stability with anti-interference capabilities. A built-in transmitter supports both digital and analog signal output, designed to simplify on-site installation, calibration and operation. The ST-710 offers a flat pH bubble sensing element to increase resistance to highly turbid waters and contamination.

Typical Applications

  • Industrial Water Applications
  • Process Water Applications
  • Cooling Water
  • Raw/Influent Water
  • Surface Water Monitoring
  • Wastewater & Stormwater Monitoring

Features

  • 0–14pH Range
  • Dual Embedded Transmitters – 4–20mA and RS-485 supporting Modbus, Eliminating the Need for Pre-Amplifier & Enhanced Robustness when the Controller is away from the Sample Point
  • Compact Design for Small Footprint, Ideally Suited for Industrial Applications
  • Tolerant to Frozen Conditions during Shipment or Storage for Short Periods
  • Large Junction Capacity (Compared to Replaceable Electrode Design) Leading to Longer Service Life and Less Maintenance
  • Stainless Solution Grounding Point on Sensor to Stay Away from Ground Loop Problems
  • Interfaces with MA-WB Wireless Adapter or PowerPACK Auxiliary Box for Bluetooth® Access via uPyxis® app

Specifications

Item ST-712
Part Number 53003
pH Range 0-14 pH
pH Resolution ±0.01 pH
Response Time 95% within 5 Seconds
Power Supply 12-36VDC, 1W
Output 4-20mA Isolated, RS-485 Isolated
Connector IP67 Water-Proof Connector/Cable 1.5m (4.5ft)
Operation Pressure up to 0.7MPa (100psi)
Installation ST-001 3/4in Tee Assembly
MA-102S Submersion Adapter
Storage Temperature -20-60 °C (-4-140 °F)
Operation Temperature 40-120 °F (4-49 °C)
Housing Material CPVC
Dimension 6.8in (172.7mm) L, 1.44in (36.6mm) D
Weight 0.37lbs (170g)
Typical Service Life 2+ Years
Warranty 13 Months from Date of Shipment
Regulation CE / RoHS

Support Documents

ST-71X Data Sheet

Water Quality Sensor (pH, ORP, Conductivity) Start-Up Guide
