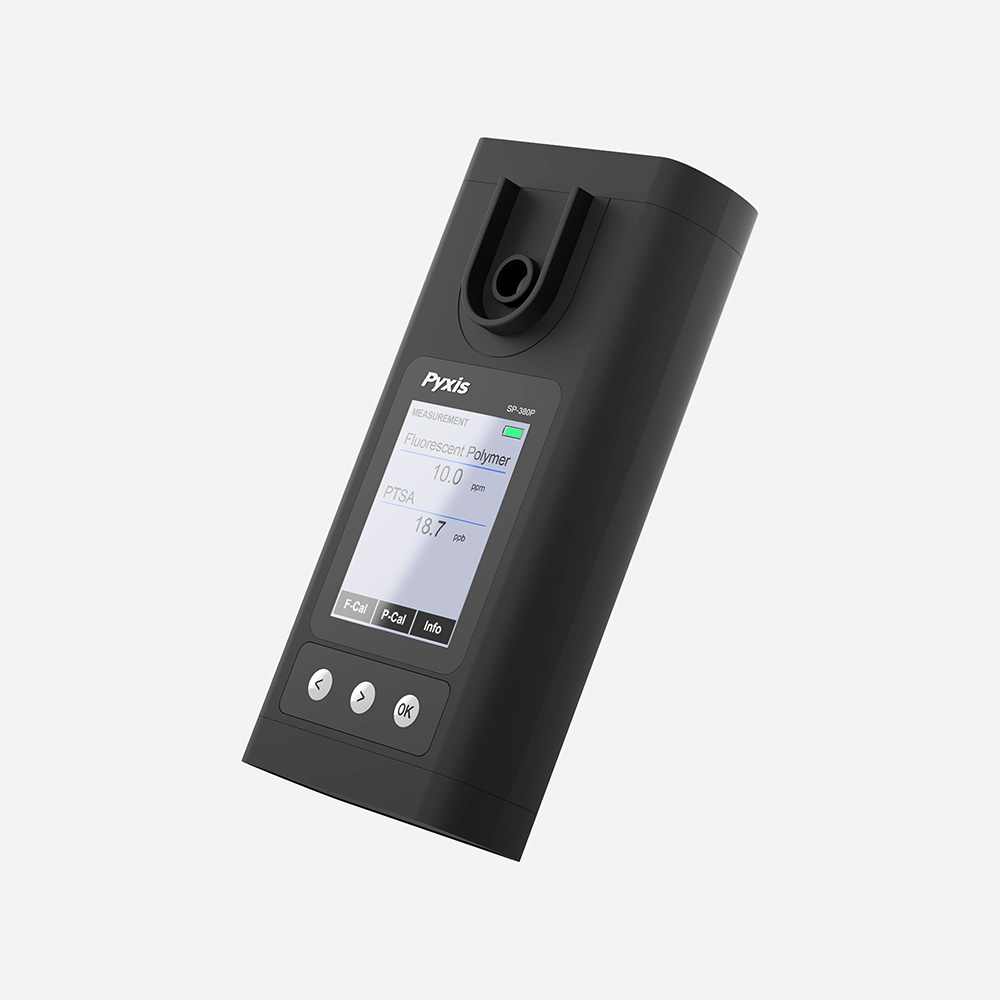

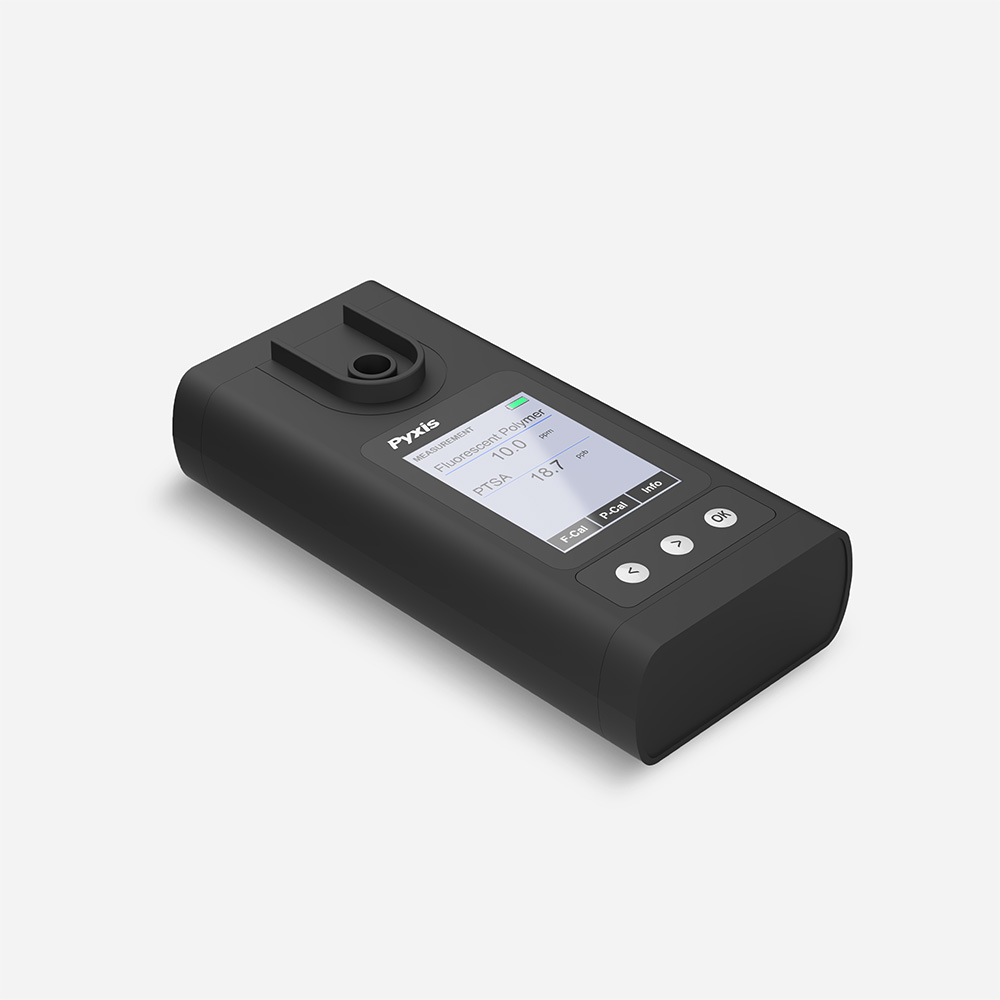

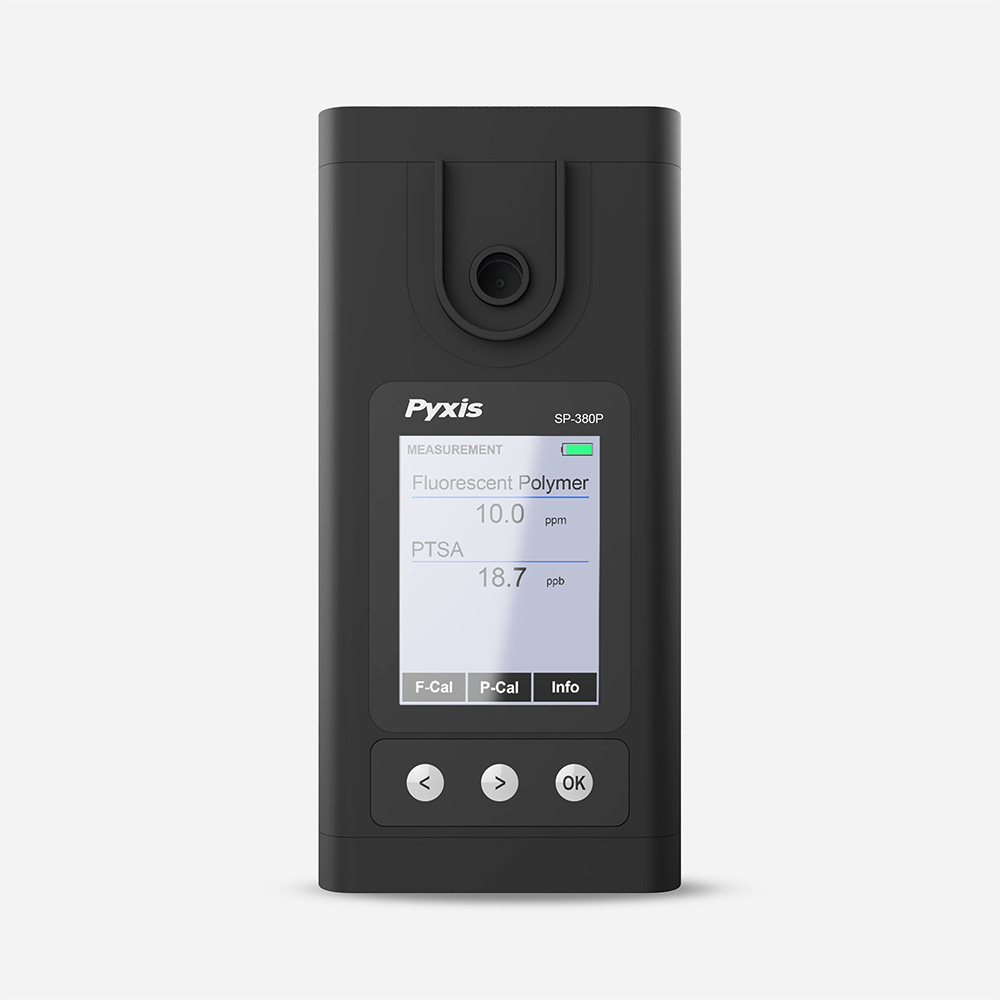

SP-380P PTSA + Fluorescent Polymer Handheld

The Best Handheld for Tracer Chemical Dosage Concentration.

Measures for both Fluorescent Polymer (0–20ppm) & PTSA (0–300ppb) while simultaneously compensating for color & turbidity interference.

CE Mark

$1,765.00

The SP-380P is a simple to use handheld fluorometer that offers direct measurement of PTSA and Fluorescent (Tagged) Polymer. Fluorescent Polymer and PTSA are tracer chemicals commonly used in cooling and process water applications. This handheld is a dual-channel fluorometer that measures for both of these vital parameters. It measures for fluorescent polymer at a range of 0–20ppm and PTSA at a range of 0–300ppb. This patent pending technology utilizes cutting-edge optical measurement for both tracer chemicals in one easy to use platform. The SP-380P simultaneously compensates for color & turbidity interference, which is commonly present in real-world waters.

  • Measures & Automatically Compensates for Color & Turbidity Interference
  • Built-In Sample Cell Cleanliness Check Diagnostics
  • No Sample Cuvette Required
  • Pyxis Lab® LOCK-IN Feature Provides Sample Lock when Stabilized
  • Water-Proof, Robust Design
  • No Sample Lid Design Eliminates Shielding from Ambient Light
  • Bluetooth® Wireless Calibration via uPyxis®
  • Easily Cleaned Sample Vial with Pyxis Lab® Handheld Cleaning Solution Kit (SER-02)

The same exact product exists as an inline sensor! Check out the ST-588.

Specifications

Item SP-380P PTSA + Fluorescent Polymer Handheld
Part Number 50402
PTSA 0.0-300.0ppb (500ppb Capable by uPyxis®)
Fluorescent Polymer 0.0-20.0ppm
Excitation Wavelength 365nm & 410nm LED
Emission Wavelength 410nm & 450nm
Wavelength Accuracy ±1nm
Precision 1.0ppb PTSA & 0.1ppm Polymer
Accuracy ±1% or ±1.0ppb PTSA
±1% or ±1.0ppm Polymer
Calibration Solution Point 0/100/200/300ppb PTSA
0/10/20ppm Polymer
Battery (4) AA Alkaline Batteries for Main Module
Typical Battery Life 3200 Readings (480mAh Battery)
Display 320×240 TFT-LCD, Visible Under Direct Sunlight
Dimension L170xW80xH45 (mm)
Weight 400g (without battery)
Temperature Range 40-106 °F (4-41 °C)
Humidity 85% at 106 °F (41 °C)
Environmental IP67
Regulation CE + RoHS



Support Documents

SP-380P-User-Manual-V2.00
SP-350P/380P Data Sheet
