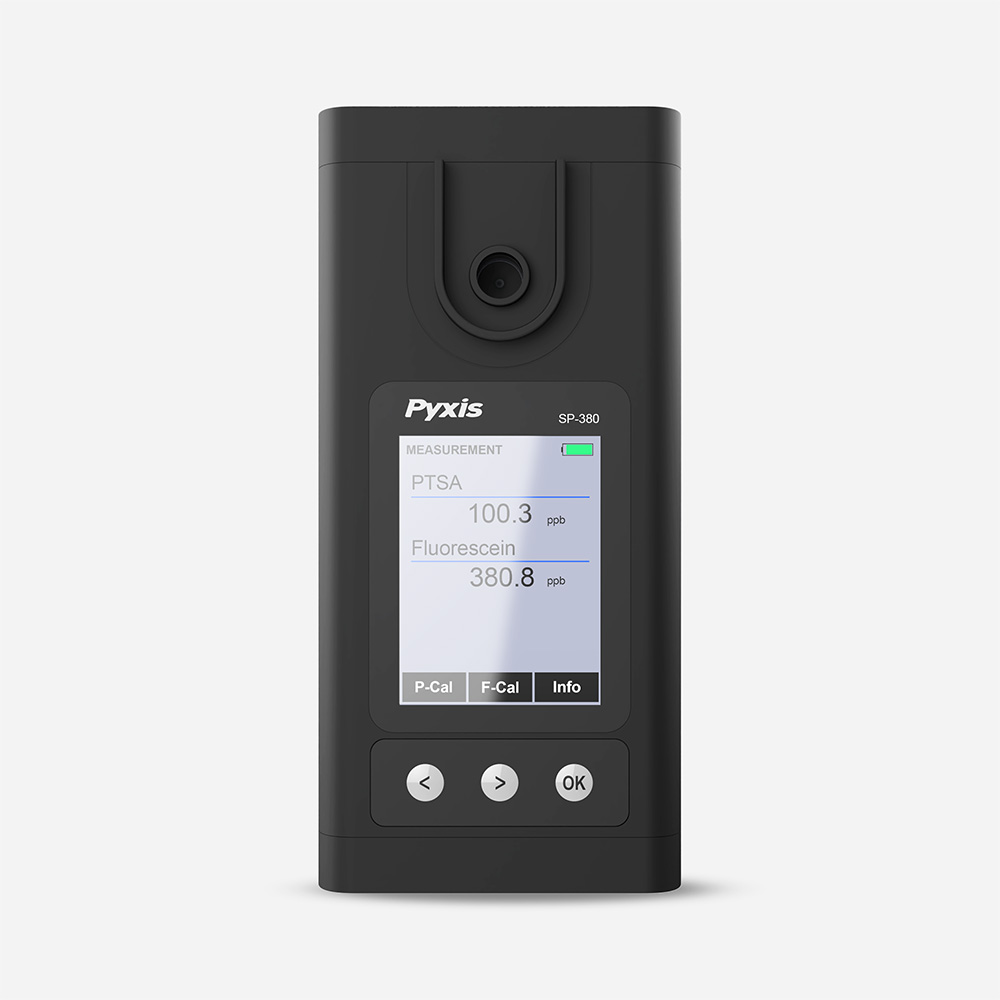

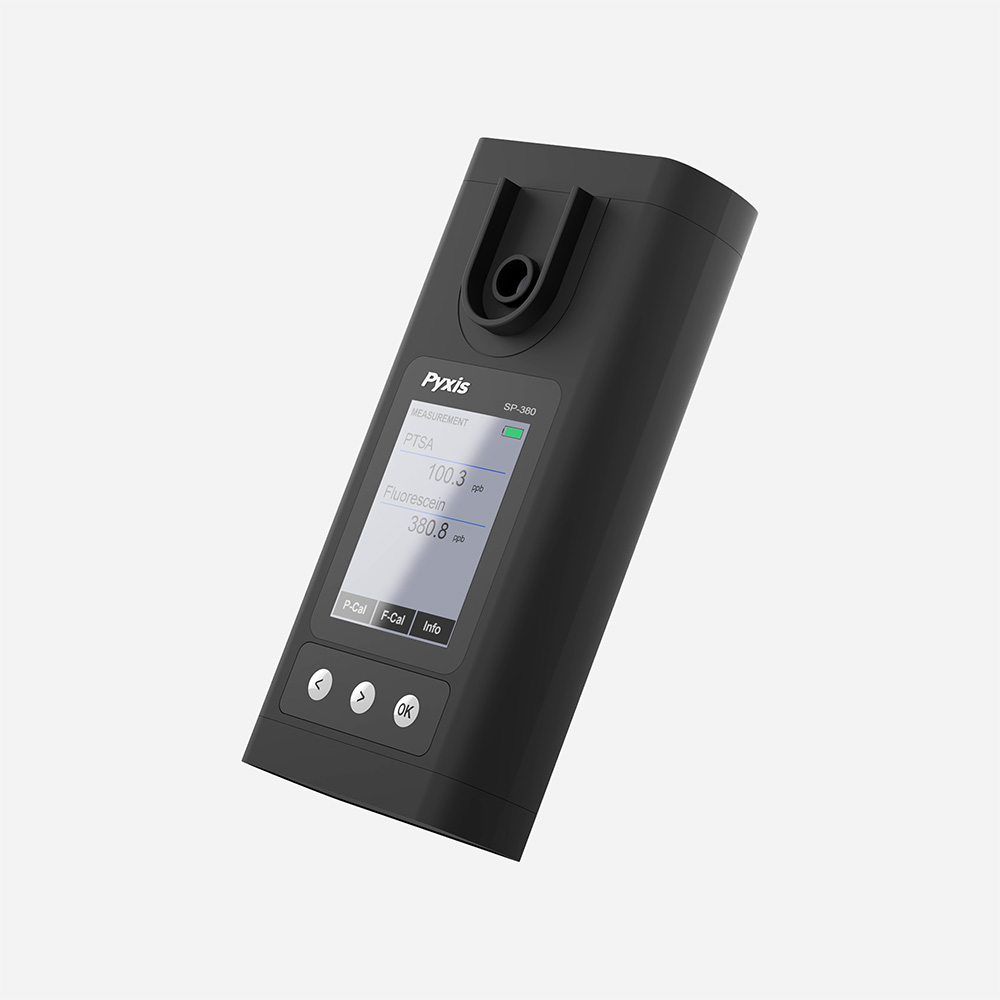

SP-380 PTSA + Fluorescein Handheld

Dual-Channel Fluorometer.

Measures for PTSA (0–300ppb) & Fluorescein (0–600ppb) while simultaneously compensating for color & turbidity interference.

CE Mark

$1,469.00

SKU 50208 Category Tags , , ,

Description

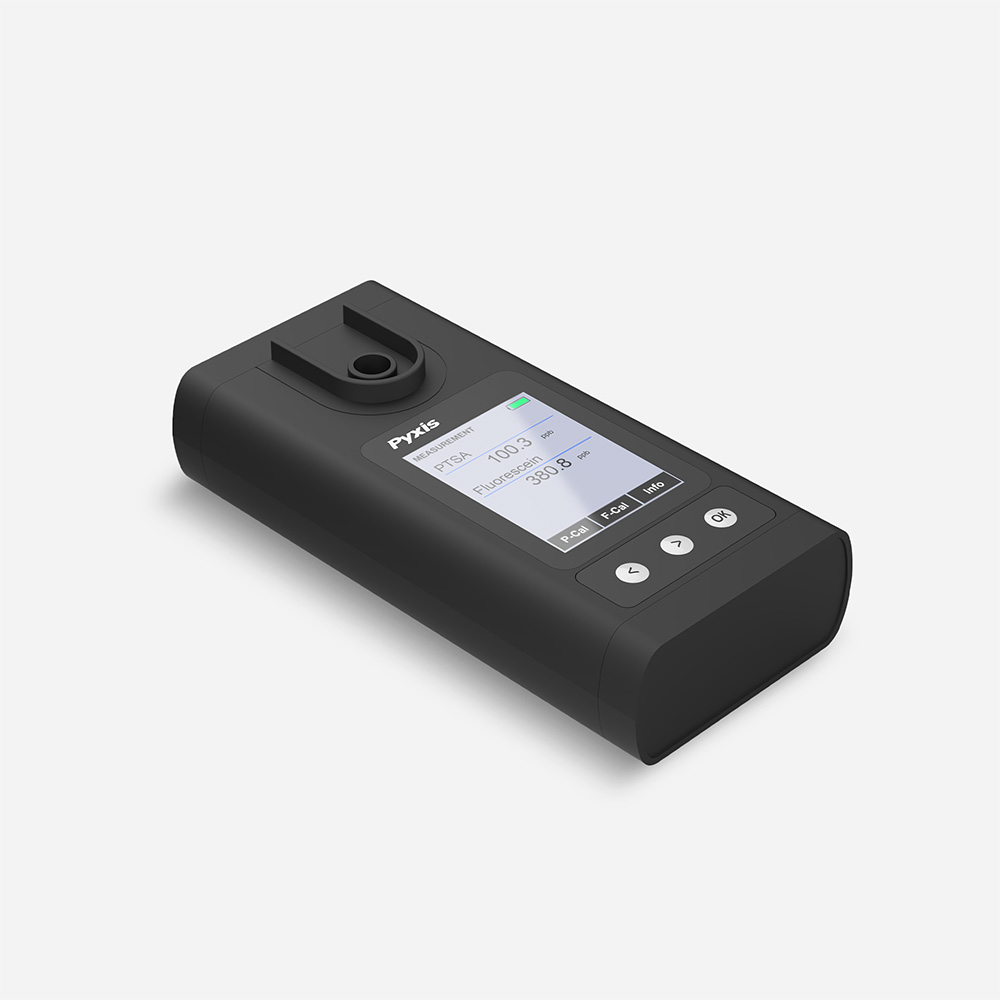

The SP-380 is a simple to use handheld fluorometer specifically designed for the direct concentration measurement of PTSA (0–300ppb) and Fluorescein (0–600ppb). It’s applications are industrial cooling, boiler and process water. The sensor allows water samples to be directly filled into the sample cell. This differentiation eliminates the need for purchasing sample cuvettes, reducing overall cost. The proprietary internal algorithms of the SP-380 fluorometer platform allows for the compensation of color and turbidity contamination. This results in dramatically improved measurement accuracy. The SP-380 also offers an internal sample cell cleanliness diagnostic function for predictive cleaning maintenance. All Pyxis Lab® handheld devices are fully integrated with Bluetooth® 5.0 capabilities for wireless access via uPyxis® for customized settings, configuration and firmware updates.

Features

  • Color & Turbidity Compensation to eliminate Measurement Interference
  • Turbidity Over-Range Alarm Features for Samples with Excessive Turbidity
  • No Sample Cuvette Required
  • Large Color Graphic Screen with LOCK-IN Feature when reading has Stabilized
  • Water-Proof & Drop Resistant Design
  • Integrated Sample Cell Cleanliness Diagnostics Function for Cleaning Frequency
  • Bluetooth® Enabled for Wireless Customization/Configuration
  • Customizable Display Output Value as ppm Product vs. ppb Tracer via uPyxis®

Specifications

Item SP-380
Part Number 50208
Range PTSA 0-300ppb
Fluorescein 0-600ppb

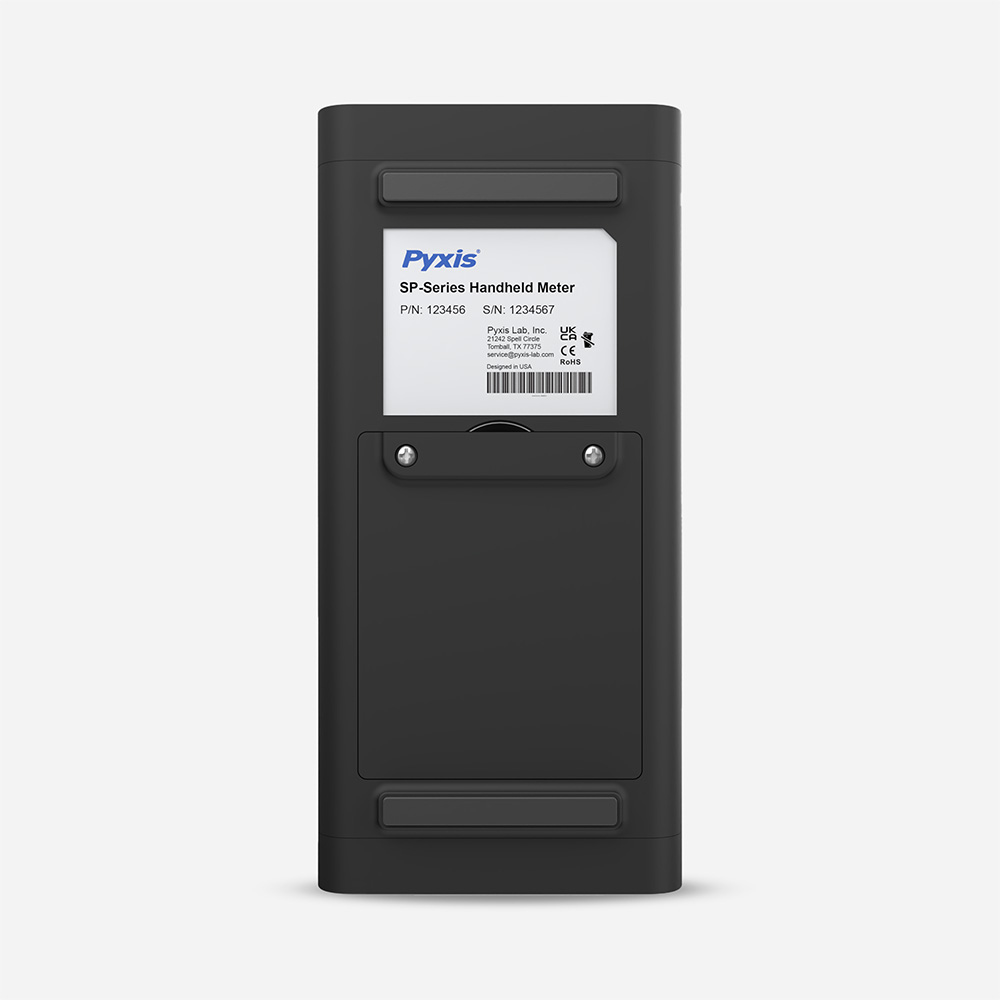

Battery (4) AA Batteries
Typical Battery Life 3,200 Readings (480mAh Battery)
Display TFT-LCD, Visible Under Direct Sunlight
Dimension L 160, W 74, H 33 mm
Weight 295g without Battery
Sample Temperature Range 40-106 °F (4-41 °C)
Measurement Cycle 15-999min (Adjustable)
Humidity 85% at 106 °F (41 °C)
Environmental IP67
Regulation CE / RoHS
Communication Bluetooth® 5.0

Support Documents

SP-380 User Manual V1.31

SP-300/400 Data Sheet
