Description

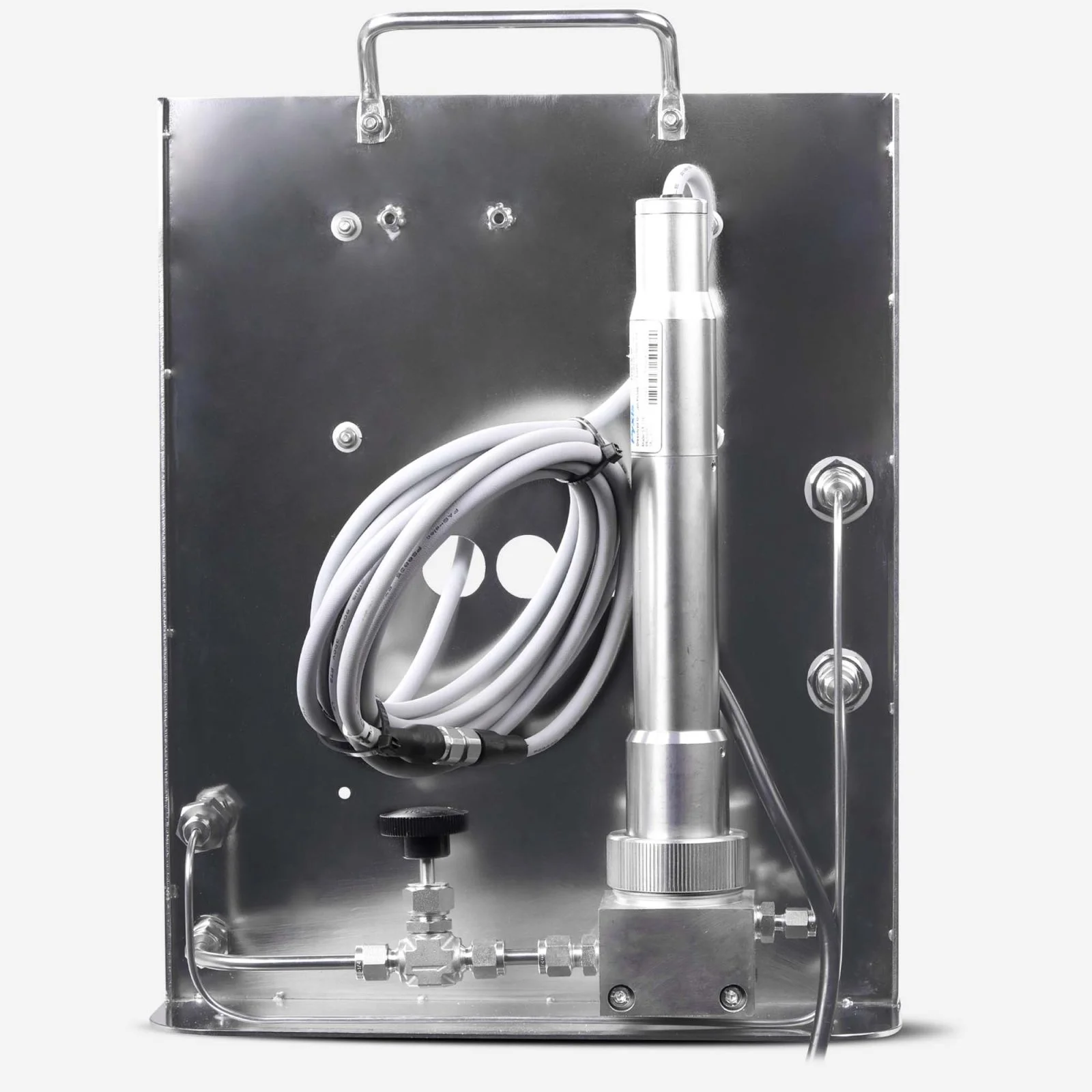

The ST-774 PortaPanel is a prefabricated panel ideally suited for those desiring to use the ST-774 Ultra-Low Dissolved Oxygen Sensor with local display and data acquisition in a portable fashion for oxygen measurement (ie. de-aerator performance studies). The PortaPanel is pre-mounted on an easy-carry, self-standing 316L stainless-steel panel. It arrives with the ST-774 sensor, flow-cell and appropriate water sample/calibration gas flow hardware.
The panel also comes equipped with an integrated UC-50 Display/Data Logging Terminal for connected to the ST-774 via RS-485 Modbus offering live data display, calibration interface and data logging of the sensor. The UC-50 offers a contact relay output and has RS-485 Modbus and (1) 4-20mA outputs for passing the sensor value onto another device. The UC-50 also offers Bluetooth 5.0 capability for those desiring to use the uPyxis mobile or desktop apps for wireless calibration and diagnostics of the Pyxis sensor connected.
Features
- Ideal for Dissolved Oxygen Studies
- Portable, Free-Standing Panel Made of 316L Stainless Steel
- Fully Integrated Plumbing + Flow Cell
- Measurement of Water Sample or Calibration Gas
- Pre-Mounted ST-774 Ultra-Low Luminescent Dissolved Oxygen Sensor
- 0.4–2,000µg/L Measurement Range
- Built-In Temperature & Pressure Sensors
- Pre-Mounted UC-50 Data Logging Terminal & Display
- Direct RS-485 Modbus Connection to the UC-50 Display
- Fully Integrated Zero & Slope Calibration Interface
- Integrated 4–20mA + RS-485 Output
- (1) Contact Alarm Relay and USB Data Logger
