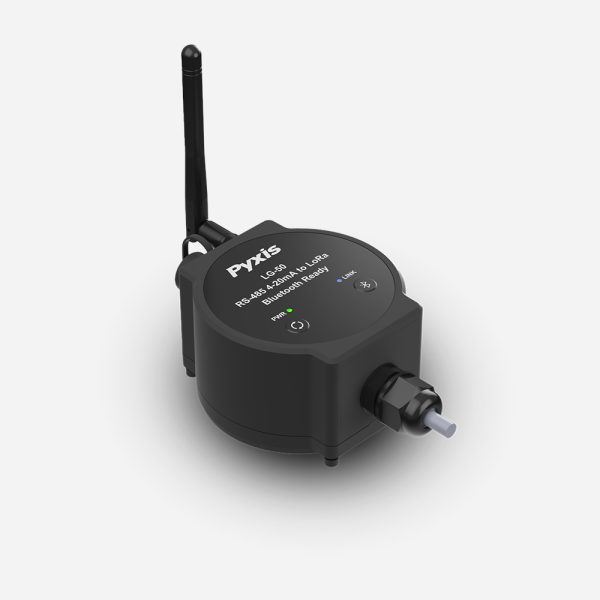

LG-50 Analog & Modbus to LoRa Converter Single Channel for Pyxis & Third Party Devices

4-20mA, Modbus to LoRa (Long Range Radio) Converter & Transmitter.

A compact LoRa wireless transmitter that connects Modbus, 4–20mA, and digital input devices to remote gateways. Ideal for industrial IoT applications, with Bluetooth setup via the uPyxis® app.

$750.00

SKU 24817 Categories ,

Description

The LG-50 is a unique wireless transmitter designed to collect local signals from Pyxis sensors and third-party devices as direct terminal (flying lead) wires via RS485 Modbus, 4-20mA input and digital input (i.e. dry contact, NPN or PNP signal inputs), and send them via Long Range Radio (LoRa) to a remote device such as the Pyxis 4G Gateway, Pyxis LG-100 or LG-200 LoRa receivers. The Pyxis LG-50 is also capable of passing through a 4-20mA signal to a local controller.

The LG-50 can be configured wirelessly via the Pyxis uPyxis® App for rapid integration and deployment in the field. Powered by a 24 VDC external power supply, the LG-50 is ideally suited for use with LG-100, LG-200 or Pyxis 4G Gateway to offer you a versatile and cost-effective IoT solution.



Support Documents

LG-50 Data Sheet
