Description

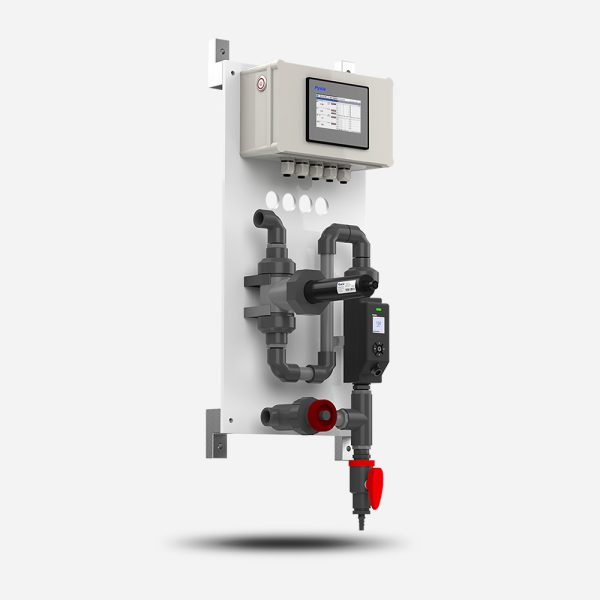

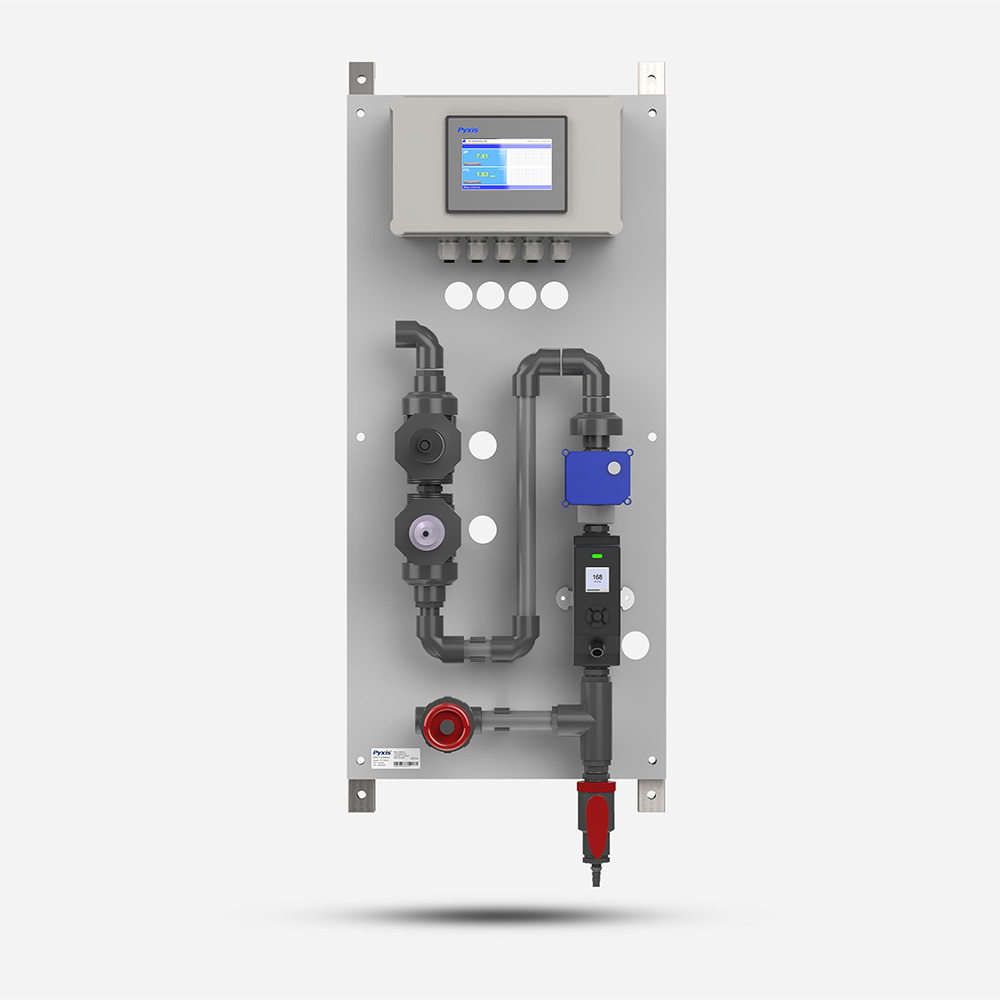

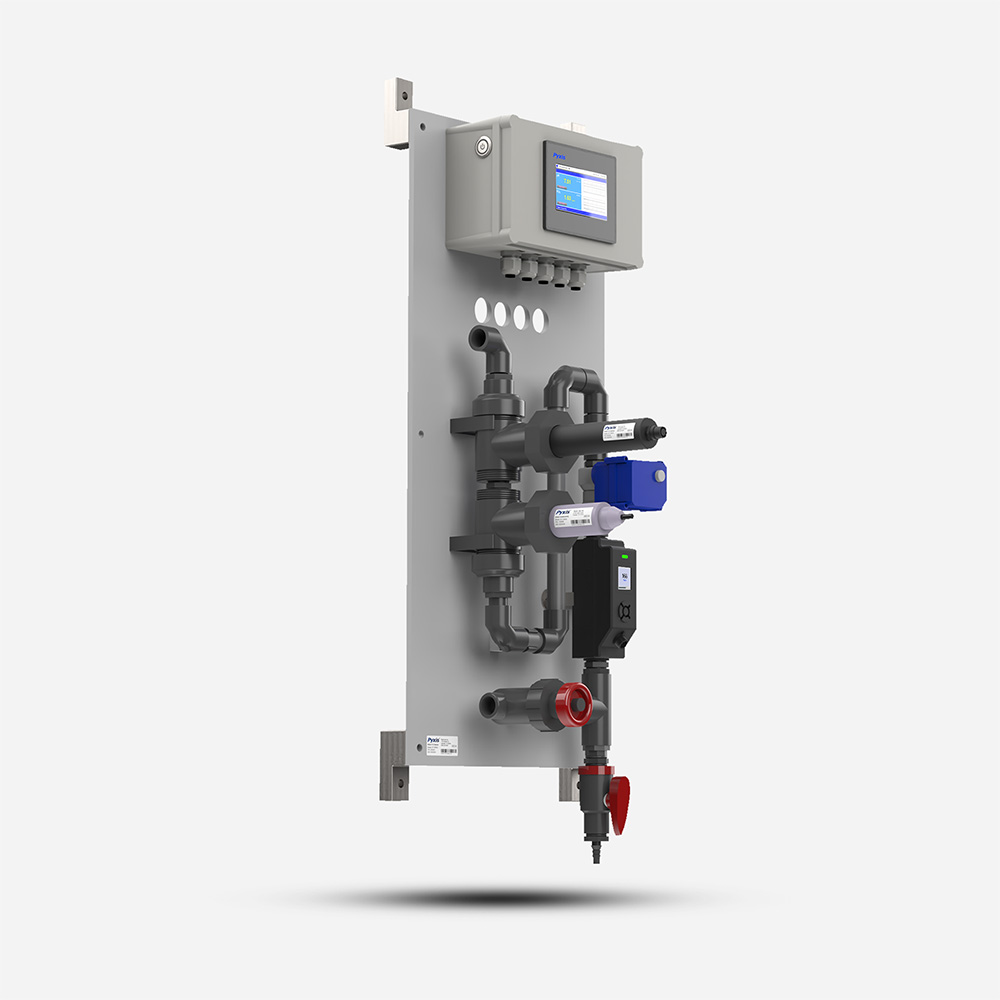

The IK-765P-DCL inline residual Chlorine and Sulfite panel is a multi-parameter inline water analyzer specifically designed as a ‘Turn-Key’ monitoring solutions for clean water applications that require constant validation of chorine removal prior to membrane or other critical to quality system applications. This proprietary technology offers highly accurate and simultaneous measurement, display, and data-logging of Chlorine (user selected as Free or Total Chlorine), Sulfite residual, pH, Temperature, and sample flow rate utilizing proprietary Pyxis Lab smart sensor technology, coupled with a Pyxis UC-80 touch screen display and data logging terminal. The IK-765P-DCL is offered in CPVC construction enabling its use in both Fresh Water and Sea Water monitoring applications. This analyzer design is a convenient and easy to integrate panel mounted solution for rapid installation and simple maintenance.
The IK-765P-DCL analyzer panel design is equipped with the propriety Pyxis ST-765 Series smart sensor configured to simultaneously measure oxidizer as Free or Total Chlorine and Sulfite concentration while also measuring pH and temperature of the sample water for refined compensation. Additionally, the analyzer is equipped with the Pyxis FS-100 ultrasonic flow sensor for real time, precise sample flow measurement and regulation.
The ST-765 Series sensor design is membrane-free and based on unique principles and incorporates Pyxis’ advanced technology in the field of bare-gold electrochemical detection. The ST-765P-DCL (CPVC) sensor include on this analyzer measures the oxidant level, sulfite level and pH simultaneously while performing temperature and pH compensation for the measurement of oxidant based on conditions present in the application of use. This technology can provide significant value in a variety of water and process applications helping to extend equipment life and performance while improving regulatory compliance.
Specifications
Item |
IK-765P-DCL |
Part Number |
49514 |
Sensor Name |
ST-765P-DCL |
Sensor Body Material |
CPVC |
Residual Chlorine Range |
0.001–5.000mg/L |
Chlorine Form |
User Selected Free or Total Chlorine1 |
Sulfite Range |
0.001–100.00mg/L (Default Range) |
Precision |
±0.01mg/L or 1% of the value with pH Compensation up to 9.0+ |
pH Range |
0.00–14.00 |
pH Precision |
±0.1 pH |
Sample Operating Temp. |
4–49 ºC (40–120 ºF) |
Sample Inlet Pressure |
7.25–60psi (0.05–0.4MPa) |
Sensor Response Time |
T95≤60s – Oxidizer / T95≤5s – pH |
Measurement Interval |
Continuous Measurement with FS-100 Ultrasonic Flow Meter |
Installation |
ST-001 CPVC Flow Cell |
MIN Flow Rate |
200mL/minute |
MAX Flow Rate |
800mL/minute |
Sample Inlet |
1/2″ NPT |
Sample Outlet |
1/2″ NPT |
Power Supply |
96–260VAC / 50–60Hz; 60W |
Storage Temperature |
-4–158 ºF (-20–70 ºC) |
Operating Temperature |
32–122 ºF (0–50 ºC) |
UC-80 Display |
4.3″ LCD Color 480×272 Pixel Resolution / Resistive Touch |
UC-80 Input |
RS-485 Modbus – RTU |
UC-80 Output |
(3) 4-20mA Analog / RS-485 Modbus – RTU / Modbus – TCP |
UC-80 Data Storage |
Built-In 1GB of RAM for storing up to 1 Million Data/Event Records |
UC-80 USB |
(1) USB Host for Data Downloading and Screen Upgrade |
UC-80 Relative Humidity |
20–90% (No Condensation) |
UC-80 Altitude |
<6,561ft (<2,000m) |
UC-80 Relay |
(2) 24VDC Relays (Passive or Active Output – User Selected) |
Dimensions |
600mm H x 300mm W x 334mm D |
Approx. Weight |
~10kg |
Plumbing Wet Material |
CPVC |
Rating |
IP-65 Panel Display / IP-67 Sensor |
Selectivity |
Non-Selective / Cross-Sensitive to other Oxidizing Species |
Compliance |
EPA-334.00 / ISO-7393 |
Regulation |
CE Marked / RoHS / UKCA |
Electrode Service Life |
2 Years |
Electrode Warranty |
6 Months |
Sensor Warranty |
13 Months |
NB-IOT Gateway |
Included & Activated with Enrollment – Contact Us |
1The Total Chlorine measures is Virtual Total Chlorine and does not incorporate Potassium Iodide Injection for “True” Total Chlorine EPA Compliance. Pyxis Lab® is consistently updating technology and specifications are subject to change without notice.
