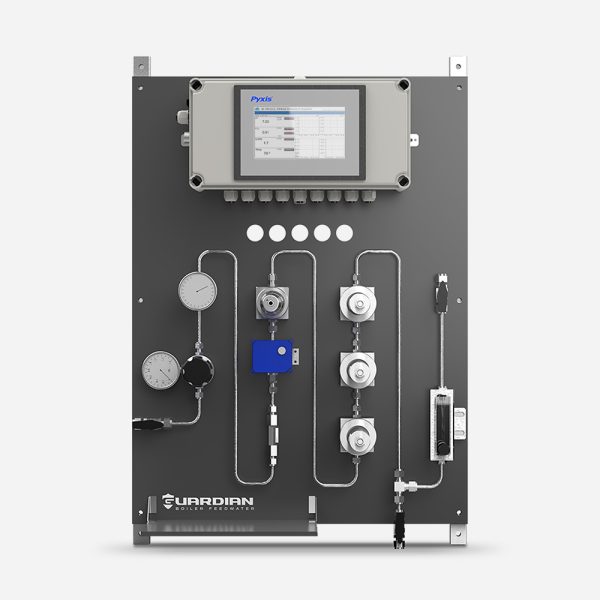

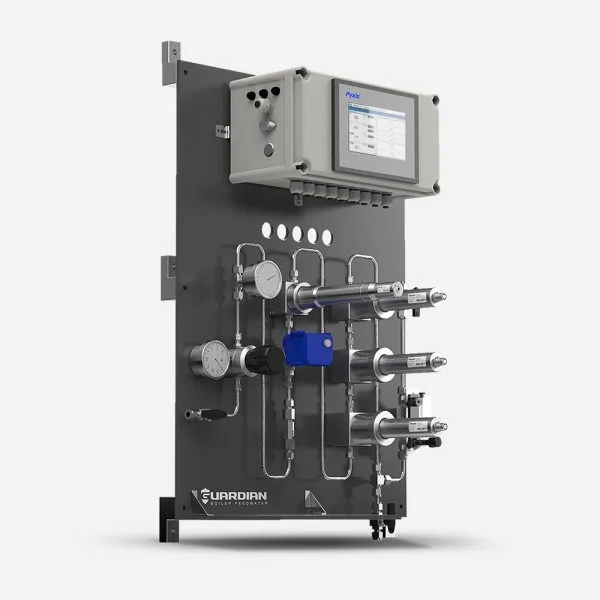

IK-2000 Series GUARDIAN Boiler Feedwater Analyzer for Dissolved Oxygen + Conductivity + Sulfite + Fluorescein

The IK-2000 Series are multi-parameter inline water quality analyzers. Specifically designed as a ‘Turn-Key’ monitoring solution for boiler feedwater and chemical treatment applications ranging from low to high pressure operations. The Guardian boiler feedwater series is offered in a “ONE-PANEL” design. Equipped with a variety of Pyxis Lab® smart sensor options based on the application and need. This format allows the user the flexibility to begin with a base model and add sensor capability over time and as desired, without the need to replace or configure anything. Furthermore, simply plug in the new sensor to the available sensor pigtail on the analyzer, and the Guardian will automatically recognize, configure, and initiate operation, calibration interface and data logging of the added sensor.

With all sensor options installed, the Guardian boiler feedwater series offers highly accurate and repeatable, real-time measurement, display, and data-logging of sample water Dissolved Oxygen (ppb), Temperature (ºC/ºF), pH, ORP (mV), Sulfite (ppm), Conductivity (μS/cm), Total Dissolved Solids (ppm) and Sample Flow Rate (mL/Min) utilizing proprietary Pyxis Lab smart sensor technology coupled with a color touch screen display and data logging terminal.The Guardian boiler feedwater series should always be installed downstream of a sample cooler and are offered in a convenient and easy to integrate panel mounted format using only 304 and 316L stainless steel with SwageLok™ compression fittings to ensure optimum sensor performance and longevity. With an integrated shelf for easy sensor calibration and maintenance, the Guardian Boiler Feedwater Series was designed with the user in mind. The Guardian IK-2000 series boiler feedwater analyzer integrates up to four (4) unique Pyxis smart sensors.

Features

• Fully Integrated & Turn-Key Boiler Feedwater Analyzer
• UC-100AGS (7-inch) Color Touch Screen Display & Data-Logging Terminal
• Pre-Configured Firmware to enable up to Four (4) Pyxis Lab® Smart Sensors
• Pre-Configured CloudLink™ 4G Wireless Gateway with Global SIM Card – Activated Upon User Enrollment
• Pre-Plumbed in fully Stainless Steel ¼-inch Tubing with Compression Fittings•Integrated Digital Sample Flow Meter and Manual Rotameter
• Integrated ST-774 Ultra Low Dissolved Oxygen Sensor with Flow Cell
• Integrated Stainless Steel Solenoid Isolation Valve for Sample Lockout on Temperature Alarm
• Three (3) Integrated ST-007 Stainless Steel Inline Tee Assemblies for up to Three (3) more Pyxis Sensors
• Plug-N-Play Sensor Installation with Pre-wired Pigtails for future Sensor Addition
• Integrated Sensor Calibration & Maintenance Shelf for User Configuration
